Telescopic Door Retainer (galvanised)

The spring loaded retainer is polyurethanelled against a high grade steel compression spring. The compression spring is located inside a sealed aluminium profile housing which is tightened by plastic end covers and protected against dirt and humidity by O rings.

The plastic cover on the front side is fitted with counter sunk stops which hold the arm in three 90° positions in the released position and prevent it moving into a position other than that required.

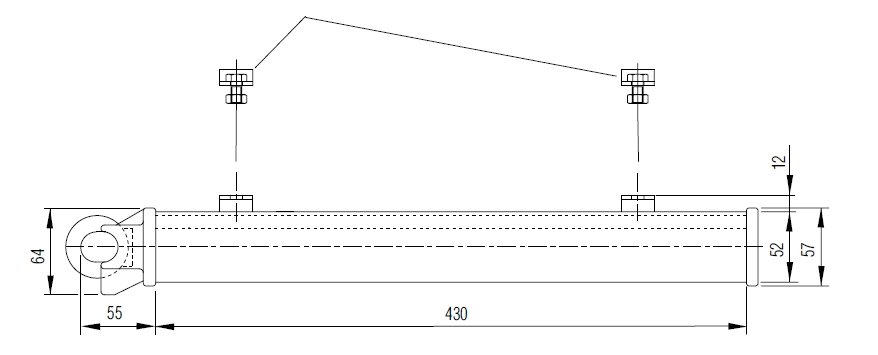

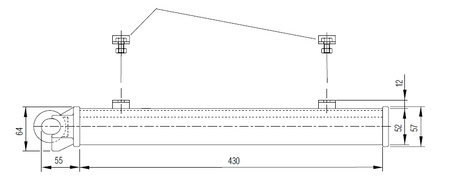

The aluminium strip comes with two longitudinal channels for holding the two, infinitely adjustable fixing brackets which are screw or weld-mounted to the vehicle.

The internal parts are galvanized, smooth-running and maintenance-free.

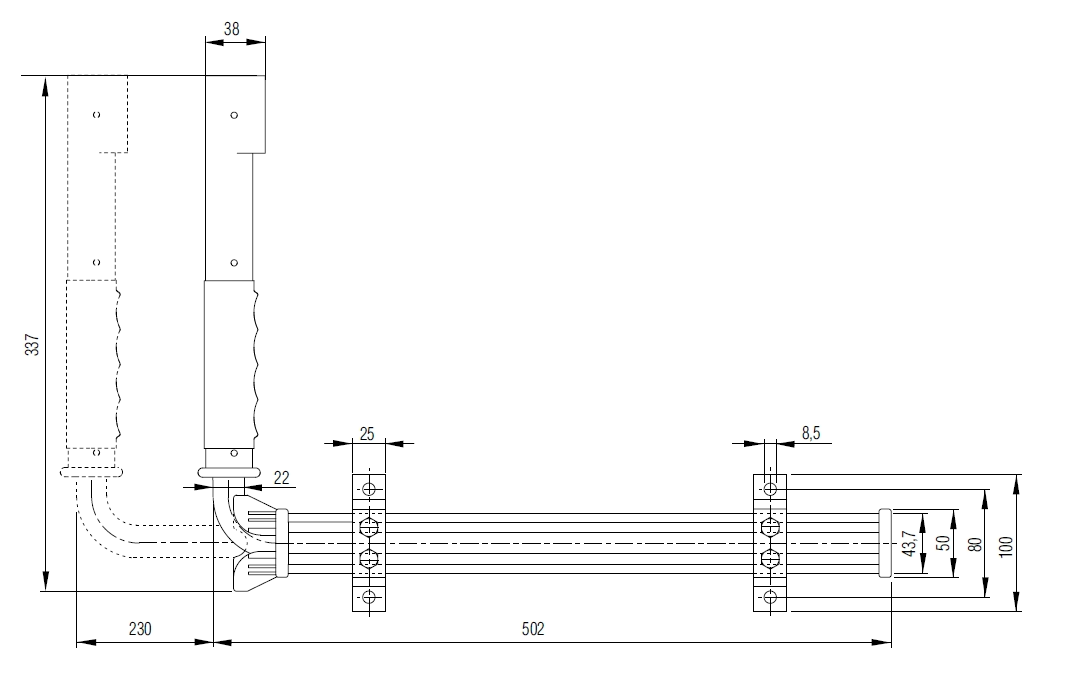

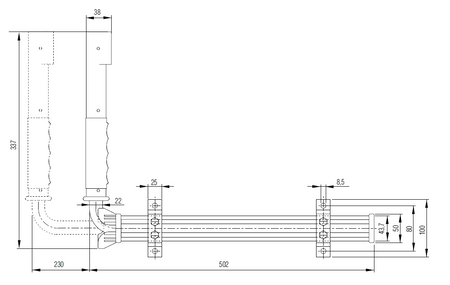

The spring loaded arm has a stroke of approx. 230 mm.
