Tila Hinge 22mm x 3000mm

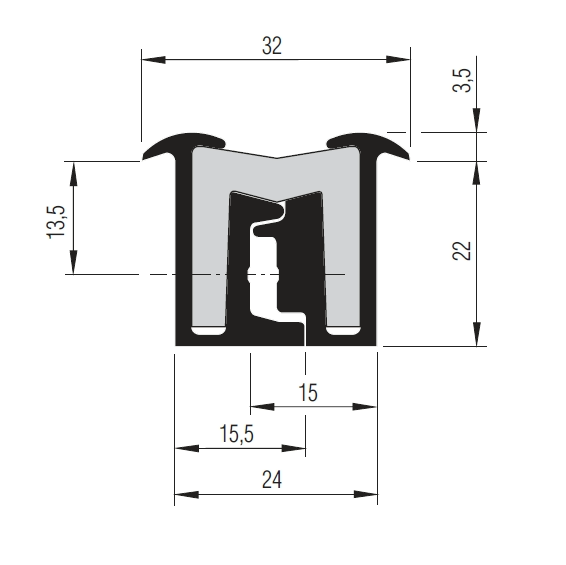

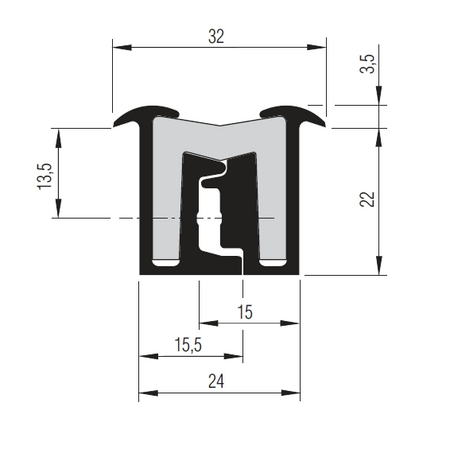

To suit 22mm panel thickness. 3000mm overall length.

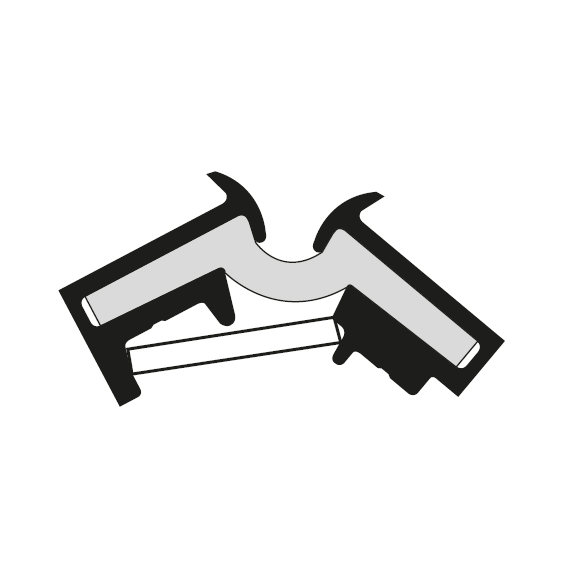

Manufactured from 2 anodised aluminium profiles interlinked with black polyurethane allowing a

180º operation and maintenance free usage for many years.

Suitable for both vertical and horizontal use.

Advantages:

• Suitable for doors, tailgates, lockers, covers & flaps
• Minimal external protrusion, Eliminating risk of injury
• Hinge & seal all-in-one along the full length
• When closed the two aluminium profiles interlock together
• Totally maintenance-free, tried and tested over many years
• Virtually no wear, Extremely robust
• Supplied fully assembled and ready to fit
• Weather resistant
• Anodised aluminium, matt silver finish

Potential Uses

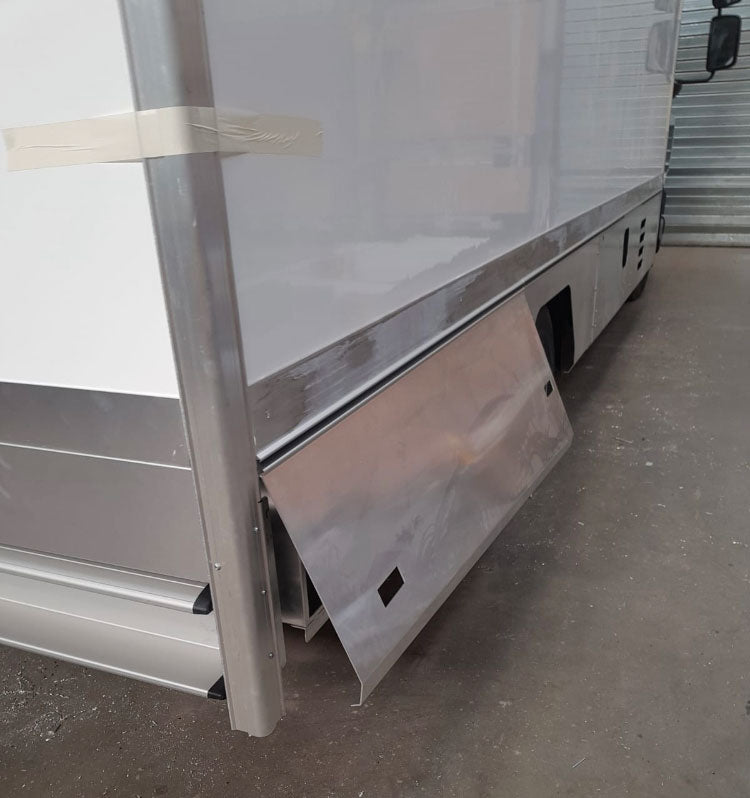

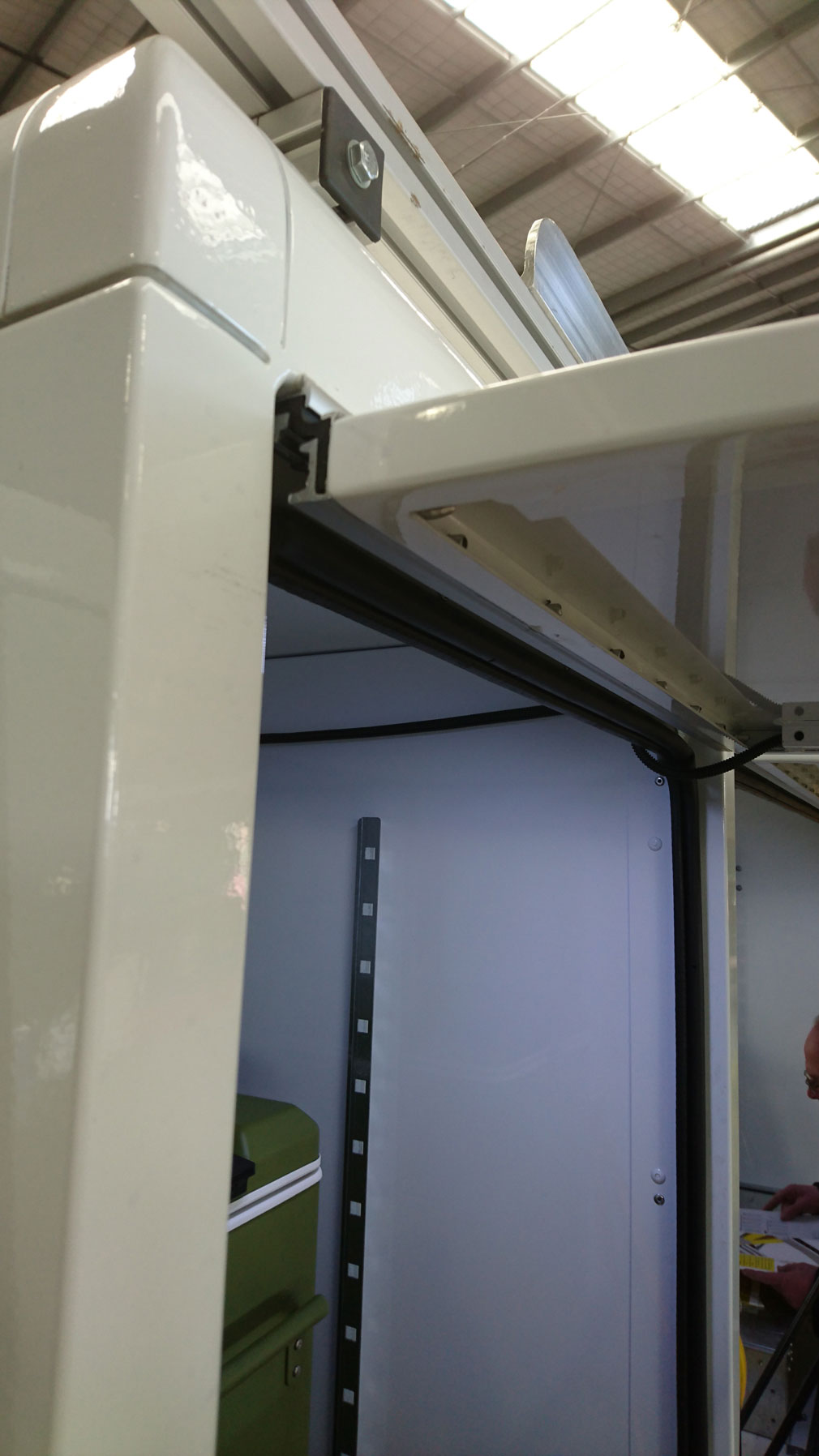

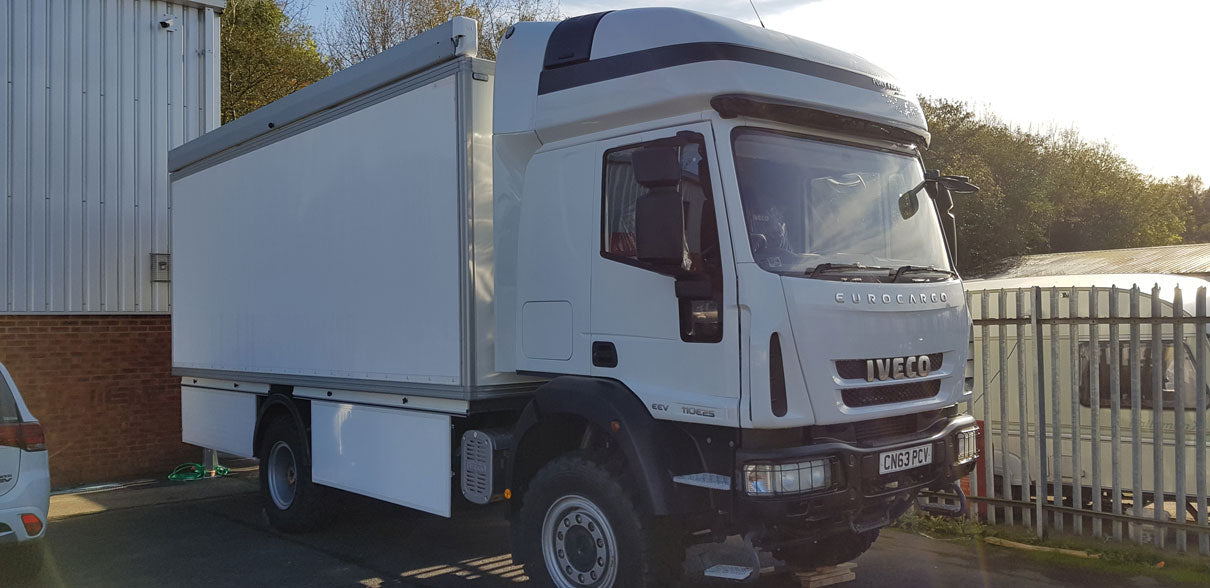

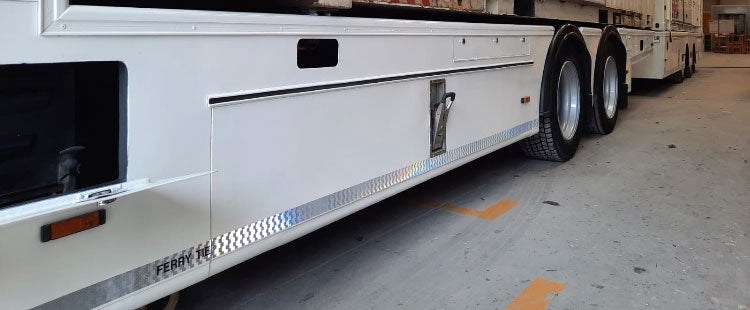

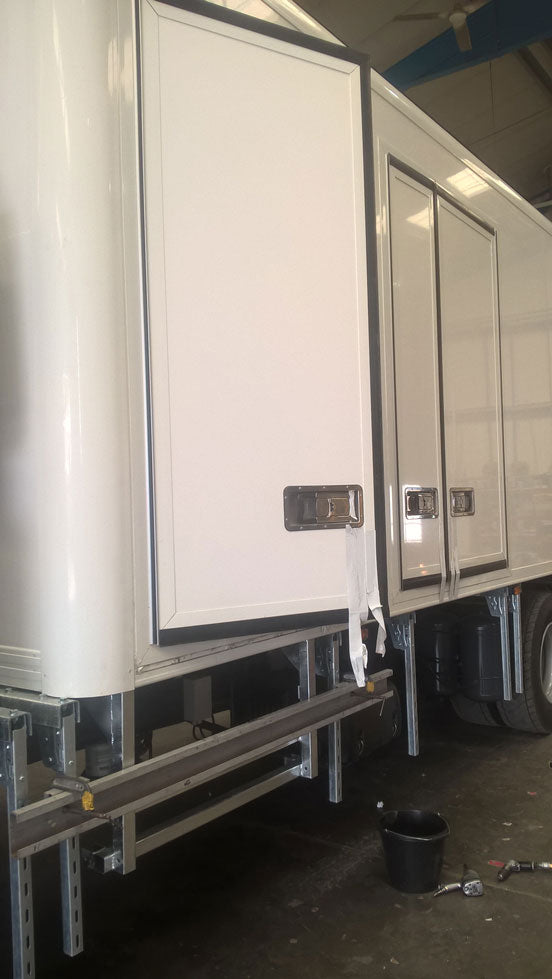

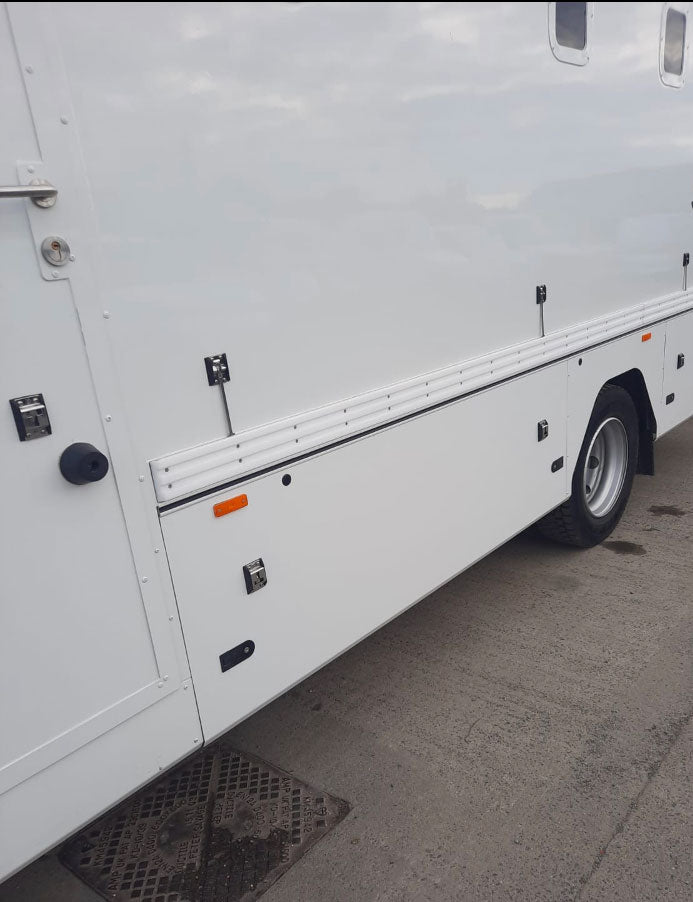

Can be fitted to doors, tailgates, lids of all kind, as single element or as an add-on unit (for so-called folding or concertina designs), in bodywork and vehicle construction, for boot and van fixings, sales vehicles and buses etc. For use wherever flaps, lids and doors are required (example pictures shown in the image gallery).

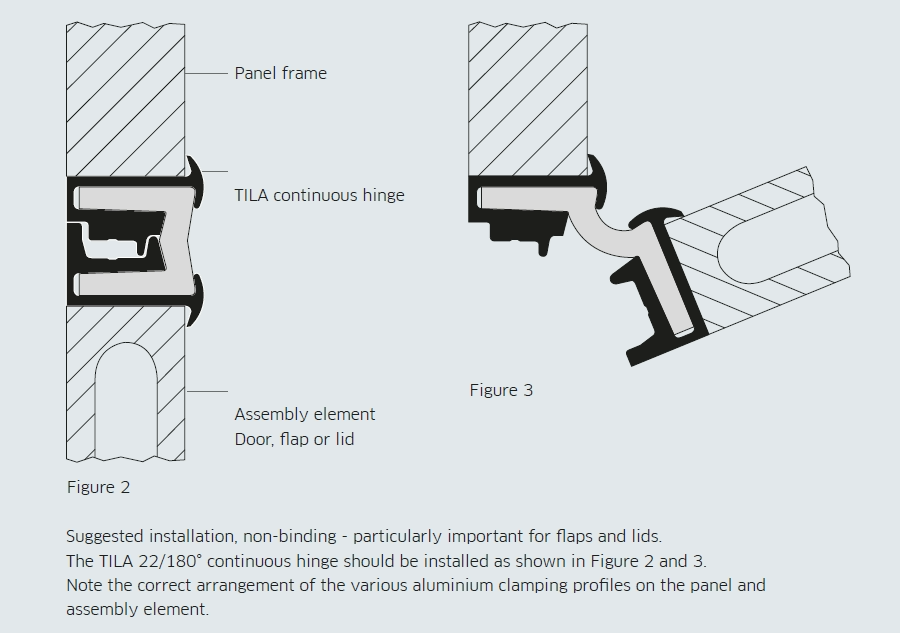

Installation
Is extremely simple since the TILA continuous hinge is supplied in the open position using spacers and with holes already pre-drilled, ready for installation.

1. Attach the TILA continuous hinge to door, flap or lid
2. Fit the installation element to the installation frame and attach the 2nd blade of the TILA continuous hinge to it
3. If you open the door, flap or lid further out the spacers fall out and the door, flap or lid is hinged and ready to use
